Line gradients

This annex provides an overview of line gradients on the Norwegian railway network.

Published: 10. September 2024

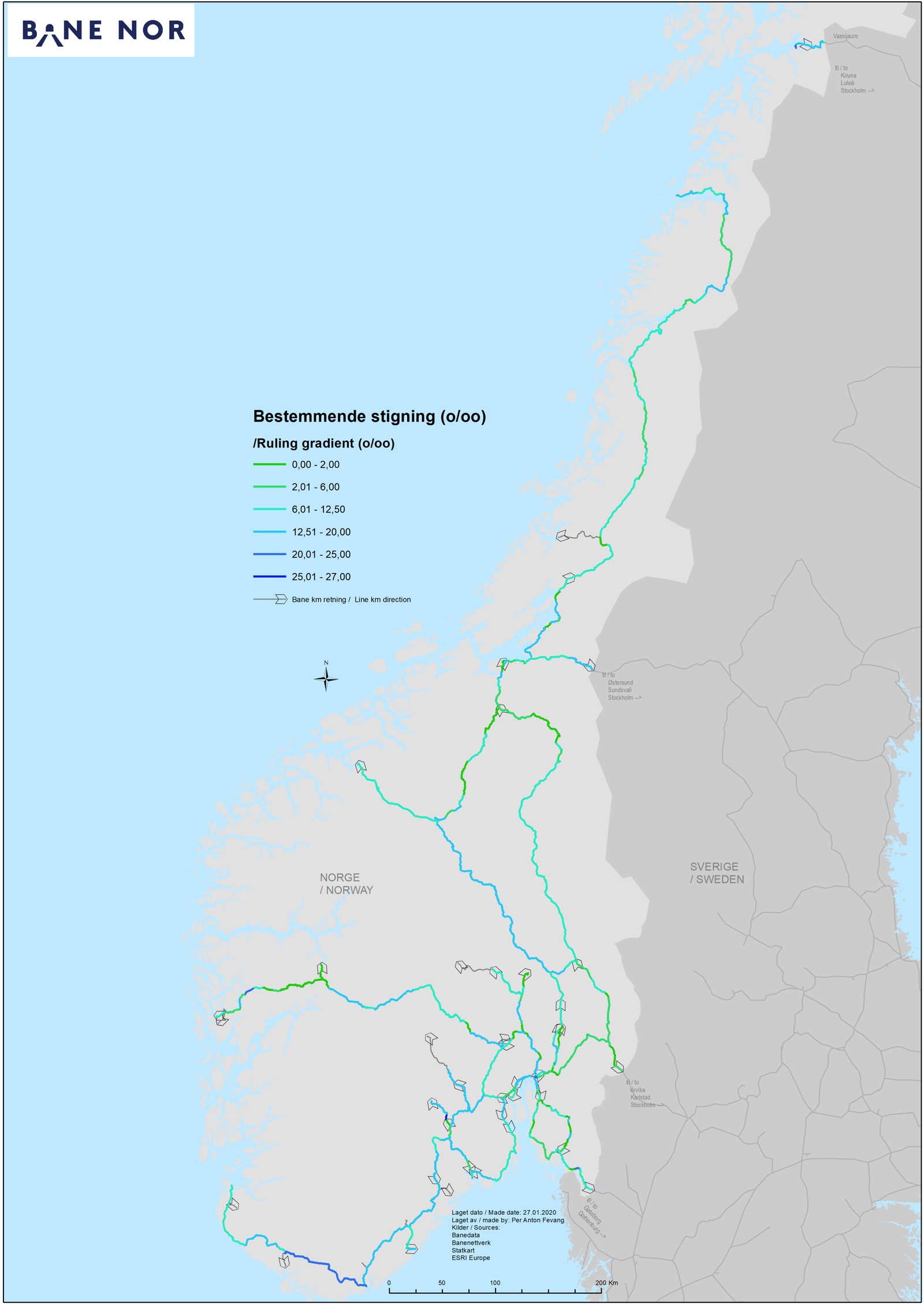

Map of line gradients in Norway.

Map of line gradients in Norway.

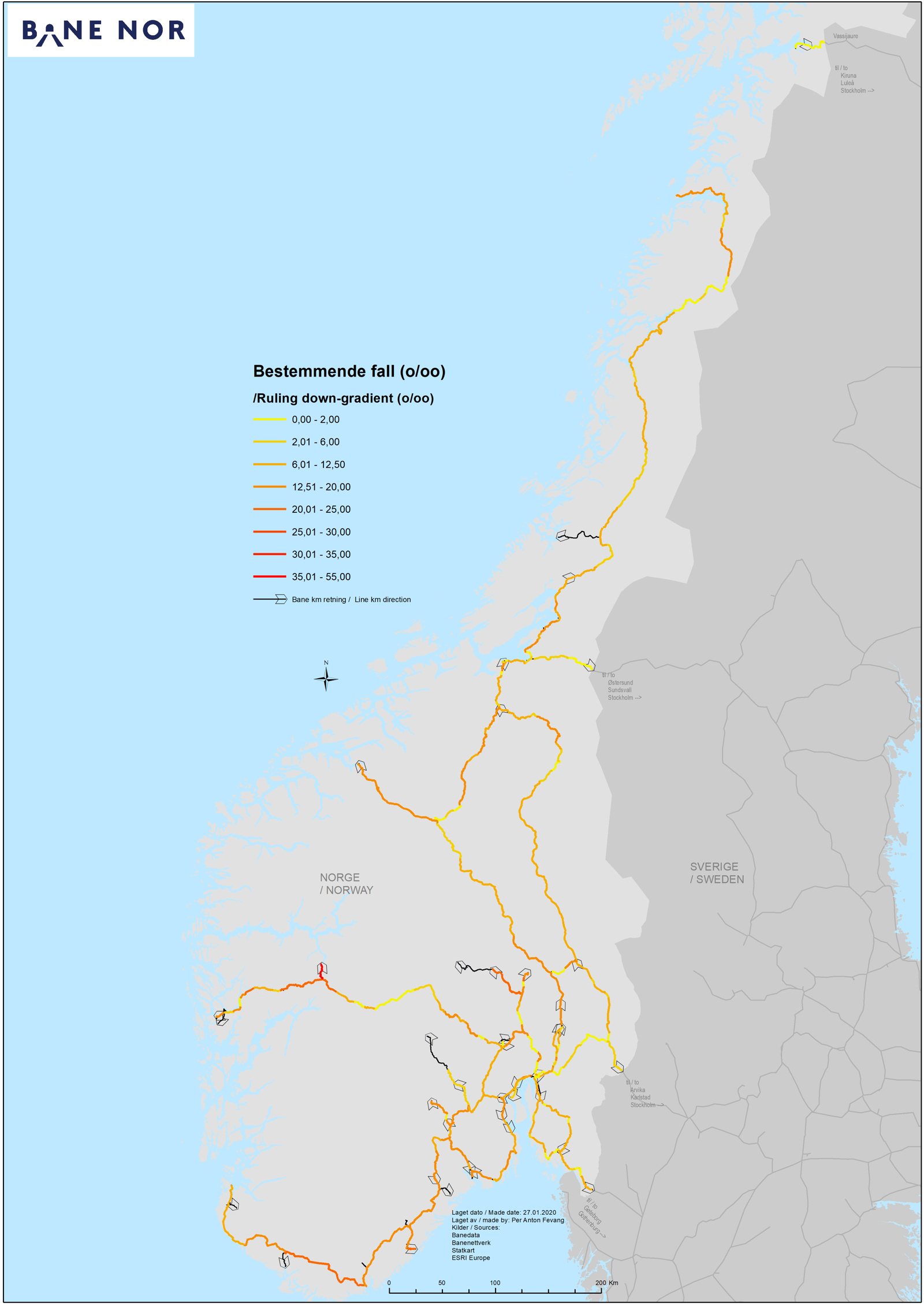

Map of down-gradients in Norway.

Map of down-gradient in Norway.

Table 1: Line gradients

 Line

 From (km) To (km) From–To station Ruling down-gradient (o/oo) Ruling gradient (o/oo)
GARB 0 2,66 Oslo S–Border DATC/FATC towards Gardermoen 0 21
GARB 2,66 6,2 (Oslo S)–Hellerud 4 6
GARB 6,2 20,95 Hellerud–Lillestrøm 12 5
GARB 20,95 28 Lillestrøm–Enger Bp. 7 11
GARB 28 32,39 Enger Bp.–Lindeberg 5 13
GARB 32,39 39,51 Lindeberg–Stangerhaugen Bp. 13 11
GARB 39,51 51,85 Stangerhaugen Bp.–Gardermoen 12 20
GARB 51,85 65,74 Gardermoen–Venjar 12 10
GARB 65,74 67,86 Venjar–Eidsvoll 27 2
HVDB 0 3,89 Oslo S–Bryn 0 25
HVDB 3,89 6,87 Bryn–Alna 0 10
HVDB 6,87 10,5 Alna–Grorud 0 10
HVDB 10,5 14,15 Grorud–Lørenskog 0 15
HVDB 14,15 15,5 Lørenskog–km 15,50 (Hanaborg hp.) 0 11
HVDB 15,5 17,93 Km 15,50–Strømmen 11 0
HVDB 17,93 25,2 Strømmen–Lillestrøm 11 0
HVDB 25,2 26,85 Lillestrøm–Leirsund 17 0
HVDB 26,85 29,86 Leirsund–Frogner 3 1
HVDB 29,86 36,38 Frogner–Kløfta 0 13
HVDB 36,38 44,6 Kløfta–Jessheim 5 11
HVDB 44,6 49,62 Jessheim–Hauerseter 0 3
HVDB 49,62 57,2 Hauerseter–Dal 12 0
HVDB 57,2 62,24 Dal–Bøn 9 0
HVDB 62,24 67,86 Bøn–Eidsvoll 5 0
DOVB 67,86 114,42 Eidsvoll–Stange 13 12
DOVB 114,42 126,26 Stange–Hamar 15 8
DOVB 126,26 148,23 Hamar–Rudshøgda 13 16
DOVB 148,23 184,18 Rudshøgda–Lillehammer 16 16
DOVB 184,18 297,24 Lillehammer–Otta 12 14
DOVB 297,24 343,04 Otta–Dombås 5 17
DOVB 343,04 361,65 Dombås–Fokstua 0 18
DOVB 361,65 372,42 Fokstua–Vålåsjø 4 6
DOVB 372,42 381,74 Vålåsjø–Hjerkinn 0 14
DOVB 381,74 393,23 Hjerkinn–Kongsvoll 17 9
DOVB 393,23 407,12 Kongsvoll–Drivstua 18 0
DOVB 407,12 429,28 Drivstua–Oppdal 15 0
DOVB 429,28 441,35 Oppdal–Fagerhaug 12 7
DOVB 441,35 455,17 Fagerhaug–Ulsberg 15 10
DOVB 455,17 466,35 Ulsberg–Berkåk 13 10
DOVB 466,35 477,31 Berkåk–Garli 10 0
DOVB 477,31 501,2 Garli–Støren 18 0
DOVB 501,2 507,89 Støren–Hovin 5 3
DOVB 507,89 520,49 Hovin–Ler 11 4
DOVB 520,49 532,09 Ler–Melhus 10 11
DOVB 532,09 537,11 Melhus–Nypan 9 18
DOVB 537,11 541,41 Nypan–Heimdal 0 19
DOVB 541,41 549,95 Heimdal–Trondheim M 18 0
DOVB 549,95 552,85 Trondheim M–Trondheim S 5 2
STLB 549 549,6 Trondheim M–bridge o/Nidelven 0 19
STLB 549,6 554,58 Bru o/Nidelven–Leangen 9 17
NORB 0,85 3,49 Trondheim S–Leangen 0 13
NORB 3,49 12,69 Leangen–Vikhammer 7 3
NORB 12,69 18,55 Vikhammer–Midtsandan 7 8
NORB 18,55 23,14 Midtsandan–Hommelvik 7 3
NORB 23,14 34,67 Hommelvik–Stjørdal 6 7
MERB 34,67 42,2 Hell–Hegra 4 8
MERB 42,2 72,02 Hegra–Gudå 6 10
MERB 72,02 102,23 Gudå–Storlien 0 19
NORB 34,67 41,9 Stjørdal–Skatval 0 15
NORB 41,9 61,4 Skatval–Åsen 18 17
NORB 61,4 69,65 Åsen–Ronglan 12 13
NORB 69,65 76,01 Ronglan–Skogn 16 18
NORB 76,01 83,9 Skogn–Levanger 13 0
NORB 83,9 91,63 Levanger–Rinnan (closed) 18 18
NORB 91,63 96,23 Rinnan–Verdal 9 3
NORB 96,23 105,47 Verdal–Røra 9 16
NORB 105,47 114,84 Røra–Mære 19 16
NORB 114,84 125,5 Mære–Steinkjer 8 0
NORB 125,5 173,57 Steinkjer–Jørstad 9 11
NORB 173,57 205,45 Jørstad–Lurudal 4 11
NORB 205,45 219,54 Lurudal–Grong 7 0
NORB 219,54 254,64 Grong–Lassemoen 9 12
NORB 254,64 290,25 Lassemoen–Namskogan 4 10
NORB 290,25 302,57 Namskogan–Bjørnstad (closed) 3 5
NORB 302,57 321,74 Bjørnstad–Majavatn 3 11
NORB 321,74 331,69 Majavatn–Sefrivatn 9 6
NORB 331,69 367,24 Sefrivatn–Trofors 12 5
NORB 367,24 393,78 Trofors–Kvalfors (closed) 12 10
NORB 393,78 406,01 Kvalfors–Mosjøen 4 6
NORB 406,01 440,77 Mosjøen–Drevvatn 9 12
NORB 440,77 468,68 Drevvatn–Bjerka 12 9
NORB 468,68 497,98 Bjerka–Mo i Rana 9 9
NORB 497,98 512,65 Mo i Rana–Skonseng 0 9
NORB 512,65 527,35 Skonseng–Grønfjelldal (closed) 2 5
NORB 527,35 534,63 Grønfjelldal–Ørtfjell 0 11
NORB 534,63 543,05 Ørtfjell–Dunderland 6 8
NORB 543,05 581,46 Dunderland–Stødi (closed) 0 18
NORB 581,46 633,88 Stødi–Røkland 18 3
NORB 633,88 647,76 Røkland–Rognan 6 4
NORB 647,76 674,23 Rognan–Fauske 11 13
NORB 674,23 704 Fauske–Oteråga 16 12
NORB 704 728,75 Oteråga–Bodø 17 15
RAUB 343,04 399,84 Dombås–Bjorli 14 10
RAUB 399,84 457,28 Bjorli–Åndalsnes 20 11
ROSB 128,28 143,78 (Hamar)–Løten 2 13
ROSB 143,78 158,38 Løten–Elverum 15 12
ROSB 158,38 246,81 Elverum–Koppang 11 11
ROSB 246,81 347,21 Koppang–Tynset 9 11
ROSB 347,21 368,15 Tynset–Tolga 8 10
ROSB 368,15 384,87 Tolga–Os 5 8
ROSB 384,87 399,05 Os–Røros 2 9
ROSB 399,05 412,54 Røros–Glåmos 3 4
ROSB 412,54 420,45 Glåmos–Rugldalen (closed) 7 8
ROSB 420,45 463,77 Rugldalen–Langlete 13 0
ROSB 463,77 472,01 Langlete–Reitstøa (closed) 6 0
ROSB 472,01 511,03 Reitstøa–(Støren) 10 3
ALLB 0,6 3,89 Loenga–Bryn 0 25
ALLB 3,89 7,31 Bryn–Alnabru 0 12
KVGB 20,95 29,11 Lillestrøm–Fetsund 0 1
KVGB 29,11 37,53 Fetsund–Sørumsand 1 4
KVGB 37,53 67,17 Sørumsand–Seterstøa 4 5
KVGB 67,17 100,28 Seterstøa–Kongsvinger 0 3
KVGB 100,28 107,07 Kongsvinger–Granli (closed) 3 3
KVGB 107,07 127,27 Granli–Skotterud 4 0
KVGB 127,27 136,27 Skotterud–riksgrensen (Charlottenberg) 4 3
SOLB 100,28 109,3 Kongsvinger–Roverud 2 4
SOLB 109,3 144,84 Roverud–Arneberg (closed) 7 6
SOLB 144,84 150,15 Arneberg–Flisa 6 0
SOLB 150,15 164,46 Flisa–Våler (closed) 8 8
SOLB 164,46 170,26 Våler–Braskereidfoss 3 7
SOLB 170,26 195,77 Braskereidfoss–(Elverum) 7 6
OBVL 0,4 12,86 Oslo S–Kolbotn 12 13
OBVL 12,86 15,72 Kolbotn–Myrvoll 13 12
OBVL 15,72 18,26 Myrvoll–Oppegård 12 0
OBVL 18,26 24,31 Oppegård–Ski 9 10
OBVL 24,31 31,15 Ski–Ås 12 5
OBVL 31,15 38,65 Ås–Vestby 12 7
OBVL 38,65 45,1 Vestby–Hølen 5 12
OBVL 45,1 53,84 Hølen–Kambo 12 0
OBVL 53,84 60,16 Kambo–Moss 9 4
OBVL 60,16 65,34 Moss–Dilling 3 10
OBVL 65,34 86,51 Dilling–Onsøy 8 5
OBVL 86,51 94,26 Onsøy–Fredrikstad 2 4
OBVL 94,26 97,75 Fredrikstad–Lisleby 0 6
OBVL 97,75 103,17 Lisleby–Greåker (closed) 10 3
OBVL 103,17 109,47 Greåker–Sarpsborg 0 10
OBVL 109,47 130,93 Sarpsborg–Berg 8 11
OBVL 130,93 136,64 Berg–Halden 5 0
OBVL 136,64 141,13 Halden–Tistedal 0 25
OBVL 141,13 150,12 Tistedal–Aspedammen 0 10
OBVL 150,12 169,12 Aspedammen–Kornsjø 10 10
OBOL 0,16 5,78 Ski–Kråkstad 10 0
OBOL 5,78 9,55 Kråkstad–Skotbu 0 10
OBOL 9,55 12,89 Skotbu–Tomter 10 0
OBOL 12,89 20,32 Tomter–Spydeberg 8 10
OBOL 20,32 29,1 Spydeberg–Askim 9 12
OBOL 29,1 35,02 Askim–Slitu 12 12
OBOL 35,02 39,47 Slitu–Mysen 10 0
OBOL 39,47 44,32 Mysen–Eidsberg 0 13
OBOL 44,32 54,31 Eidsberg–Rakkestad 12 0
OBOL 54,31 60,99 Rakkestad–Gautestad 8 13
OBOL 60,99 72,4 Gautestad–Ise 11 0
OBOL 72,4 78,97 Ise–(Sarpsborg) 8 5
DRMB 2,07 4,38 (Oslo S)–Skøyen 25 14
DRMB 4,38 14,14 (Filipstad) Skøyen- Sandvika 9 15
DRMB 14,14 23,83 Sandvika–Asker 5 13
ASRB 7 14,14 Lysaker–Sandvika (Askerbanen) 20 17
ASRB 14,14 23,83 Sandvika–Asker (Askerbanen) 12 14
DRMB 23,83 52,86 Asker–Drammen 10 6
SPIB 23,83 37,42 Asker–Spikkestad 5 11
SORB 56,16 70,22 (Drammen)–Hokksund 7 8
SORB 70,22 99,37 Hokksund–Kongsberg 7 17
SORB 99,37 136,24 Kongsberg–Hjuksebø 18 18
SORB 136,24 145,95 Hjuksebø–Nordagutu 12 5
SORB 145,95 156,49 Nordagutu–Gvarv 17 14
SORB 156,49 177,48 Gvarv–Lunde 10 12
SORB 177,48 220,76 Lunde–Neslandsvatn 15 15
SORB 220,76 281,41 Neslandsvatn–Nelaug 18 17
SORB 281,41 345,25 Nelaug–Grovane 18 18
SORB 345,25 365,29 Grovane–Kristiansand 17 16
SORB 365,29 468,63 Kristiansand–Sira 25 25
SORB 468,63 477,24 Sira–Moi 19 10
SORB 477,24 498,15 Moi–Ualand 19 19
SORB 498,15 525,56 Ualand–Egersund 19 15
SORB 525,56 598,7 Egersund–Stavanger 10 10
VESB 53,06 76,75 (Drammen)–km 76,75 (Holm Bp.) 18 15
VESB 76,75 113,9 Km 76,75–Tønsberg 12 10
VESB 113,9 139,52 Tønsberg–Sandefjord 16 10
VESB 139,52 158,66 Sandefjord–Larvik 10 11
VESB 160 182 Larvik–(Porsgrunn) 13 19
NUMB 99,62 147,17 (Kongsberg)–Rollag 6 13
TINB 135,51 145,72 Hjuksebø–Notodden 17 0
TINB 145,72 151,2 Notodden–Lisleherad (closed) 2 27
TINB 151,2 175,12 Lisleherad–Tinnoset (closed) 14 13
BRAB 145,95 180,5 Nordagutu–Skien 18 16
BRAB 180,5 183,817 Skien–Eikonrød 14 5
BRAB 183,817 190,12 Eikonrød–Porsgrunn 8 5
VESB 181,48 181,77 (Porsgrunn)–Myrane 0 13
BREB 192,5 200,25 (Myrane)–Ørvik 14 12
ADLB 281,73 307,44 (Nelaug)–Rise 14 9
ADLB 307,44 317,62 Rise–Arendal 22 17
RANB 70,75 91,45 (Hokksund)–Geithus 7 10
RANB 91,45 118,03 Geithus–km 118,03 (Ask hp./L) 7 7
RANB 118,03 125 Km 118,03–Hønefoss Randsfjordbanen 10 12
RANB 125 130,92 Hønefoss–Hen (closed) 0 18
ALNB 0,61 6,25 Alnabanen Alnabru–Grefsen 9 9
GJKB 2,3 6,95 (Oslo S)–Grefsen 0 21
GJKB 6,95 10,28 Grefsen–Kjelsås 0 16
GJKB 10,28 19,34 Kjelsås–Movatn 0 19
GJKB 19,34 24,26 Movatn–Nittedal 17 17
GJKB 24,26 27,73 Nittedal–Åneby 11 0
GJKB 27,73 32,07 Åneby–Hakadal 15 0
GJKB 32,07 49,11 Hakadal–Bjørgeseter 1 13
GJKB 49,11 53,39 Bjørgeseter–Grua 0 15
GJKB 53,39 57,74 Grua–Roa 16 0
ROAB 57,74 65,85 Roa–Grindvoll 20 18
ROAB 65,85 76,52 Grindvoll–Jevnaker 20 0
ROAB 76,52 89,57 Jevnaker–Hønefoss 17 12
BRGB 89,57 100,45 Hønefoss–Veme 12 20
BRGB 100,45 111,99 Veme–Sokna 8 14
BRGB 111,99 120,07 Sokna–Rallerud bp. 0 14
BRGB 120,07 129,7 Rallerud bp.–Trolldalen 14 14
BRGB 129,7 140,78 Trolldalen–Gulsvik 14 0
BRGB 140,78 152 Gulsvik–Flå 10 12
BRGB 152 169,97 Flå–Bergheim 13 12
BRGB 169,97 185,42 Bergheim–Nesbyen 10 10
BRGB 185,42 217,85 Nesbyen–Torpo 6 12
BRGB 217,85 228,21 Torpo–Ål 0 15
BRGB 228,21 264,67 Ål–Ustaoset 0 20
BRGB 264,67 275,5 Ustaoset–Haugastøl 9 10
BRGB 275,5 288,89 Haugastøl–Tunga 2 17
BRGB 288,89 309,58 Tunga–Fagernut 9 17
BRGB 309,58 322,8 Fagernut–Hallingskeid 22 17
BRGB 322,8 335,8 Hallingskeid–Myrdal 22 0
BRGB 335,8 354,22 Myrdal–Mjølfjell 21 0
BRGB 354,22 385,32 Mjølfjell–Voss 22 0
BRGB 385,32 392,55 Voss–Bulken 5 6
BRGB 392,55 403,66 Bulken–Evanger 12 0
BRGB 403,66 414,13 Evanger–Bolstadøyri 10 10
BRGB 414,13 425,29 Bolstadøyri–Dale 21 21
BRGB 425,29 432,22 Dale–Stanghelle 20 5
BRGB 432,22 440,53 Stanghelle–Vaksdal 0 13
BRGB 440,53 452,41 Vaksdal–Trengereid 18 6
BRGB 452,41 461,93 Trengereid–Arna 5 5
BRGB 461,93 471,25 Arna–Bergen 16 10
FLMB 335,8 356 Myrdal–Flåm 55 0
GJKB 57,74 67,66 Roa–Gran 16 0
GJKB 67,66 71,92 Gran–Jaren 2 4
GJKB 71,92 81,23 Jaren–Bleiken 0 20
GJKB 81,23 91,99 Bleiken–Kutjern 9 20
GJKB 91,99 100,89 Kutjern–Eina 16 3
GJKB 100,89 106,65 Eina–Reinsvoll 16 12
GJKB 106,65 111,7 Reinsvoll–Raufoss 1 0
GJKB 111,7 115,59 Raufoss–Breiskallen 21 0
GJKB 115,59 123,83 Breiskallen–Gjøvik 20 0
VALB 100,89 147,91 Eina–Dokka (closed) 21 10
OFTB 0 3,7 Narvik terminal–Narvik station 0 21
OFTB 3,7 13,76 Narvik–Straumsnes 0 16
OFTB 13,76 20,85 Straumsnes–Rombak 0 16
OFTB 20,85 29,73 Rombak–Katterat 0 16
OFTB 29,73 40,42 Katterat–Bjørnfjell 0 17
OFTB 40,42 41,94 Bjørnfjell–riksgrensen (Vassijaure) 0 10
