Axle load

This annex provides and overview of axle load and maximum speed on the Norwegian railway network, particularly dimensions and limitations.

Published: 10. September 2024

Superstructure class, axle load and max speed

Note that axle load and speed values are based on the design parameters of the superstructure. The substructure and track geometry may in certain places restrict both the permitted speed and axle load. Consequently, the permitted axle load/speed on a given line section will not always correspond to the axle load/speed allowed by the superstructure class of that section. The superstructure class is determined on the basis of data (rail spacing and sleeper spacing) from BaneData.

Shorter subsections may have a higher superstructure class without affecting the applicable class of the overall line section. Kragerøbanen, Namsosbanen, Ålgårdbanen, and Tinnosbanen section Notodden–Tinnoset are not included in this list, as they are considered closed.

Line Section Superstructure class
Alnalinjen Grefsen–Alnabru C
Arendalsbanen Nelaug–Arendal B
Askerbanen Lysaker–Asker D
Bergensbanen Hønefoss–Myrdal–Voss–Bergen C+
Bratsbergbanen Nordagutu–Skien C
Skien–Porsgrunn C+
Brevikbanen Myrane–Ørvik C
Dovrebanen Eidsvoll–Kleverud D
Kleverud–Hamar–Dombås–Oppdal C+
Oppdal–Støren C
Støren–Trondheim S C+
Drammensbanen Oslo S–Lysaker–Asker–Drammen–Gulskogen C+
Flekkefjorbanen Sira–Flekkefjord A
Flåmsbana Myrdal–Flåm C+
Follobanen Oslo S–Ski D
Gardemobanen Oslo S–Eidsvoll D
Gjøvikbanen Oslo S–Grefsen–Roa C+
Roa–EinaGjøvik C
Godssporet Alnabru–Loenga Alnabru–Loenga C+
Hardangerbana Voss–Palmafoss C+
Hovedbanen Oslo S–Aker–Lillestrøm–Eidsvoll C+
Kongsvingerbanen Lillestrøm–Kongsvinger–Magnor border C+
Meråkerbanen Hell–Storlien border C
Nordlandsbanen Trondheim–Steinkjer–Grong–Mo i Rana–Ørtfjell–Fauske–Bodø C+
Numedalsbanen Kongsberg–Flesberg–(Rollag) B
Ofotbanen Narvik havn–Bjørnfjell border/Vassijaure Ofotbanen
Randsfjordbanen Hokksund–Hønefoss C+
Hønefoss–Bergmoen turnback facility B
Raumabanen Dombås–Åndalsnes C+
Roa–Hønefossbanen Roa–Hønefoss C+
Rørosbanen Hamar–Elverum–Koppang–Tynset–Røros–Støren C+
Solørbanen Kongsvinger–Elverum C
Spikkestadbanen Asker–Spikkestad C
Stavne–Leangenbanen Stavne–Leanger B
Sørlandsbanen Drammen/Gulskogen–Stavanger C
Tinnosbanen Hjuksebø–Notodden C
Vestfoldbanen* Drammen–Nykirke D
Nykirke–Tønsberg–Larvik–Martineåsen C+
Martineåsen–Myrane D
Myrane–Porsgrunn C+
Østfoldbanen vestre linje Oslo S–Ski–Moss–Halden C+
Halden–Kornsjø border C
Østfoldbanen østre linje Ski–Spydeberg C
Spydeberg–Sarpsborg B

*When Nykirke–Barkåker opens up for traffic by 2026, the following superstructure classes will apply for TT2727:

Table: Superstructure classes Vestfoldbanen – TT27

Line Section Superstructure class
Vestfoldbanen  Drammen–Tønsberg D
Tønsberg–Larvik–Martineåsen C+
Martineåsen–Myrane D
Myrane–Porsgrunn C+

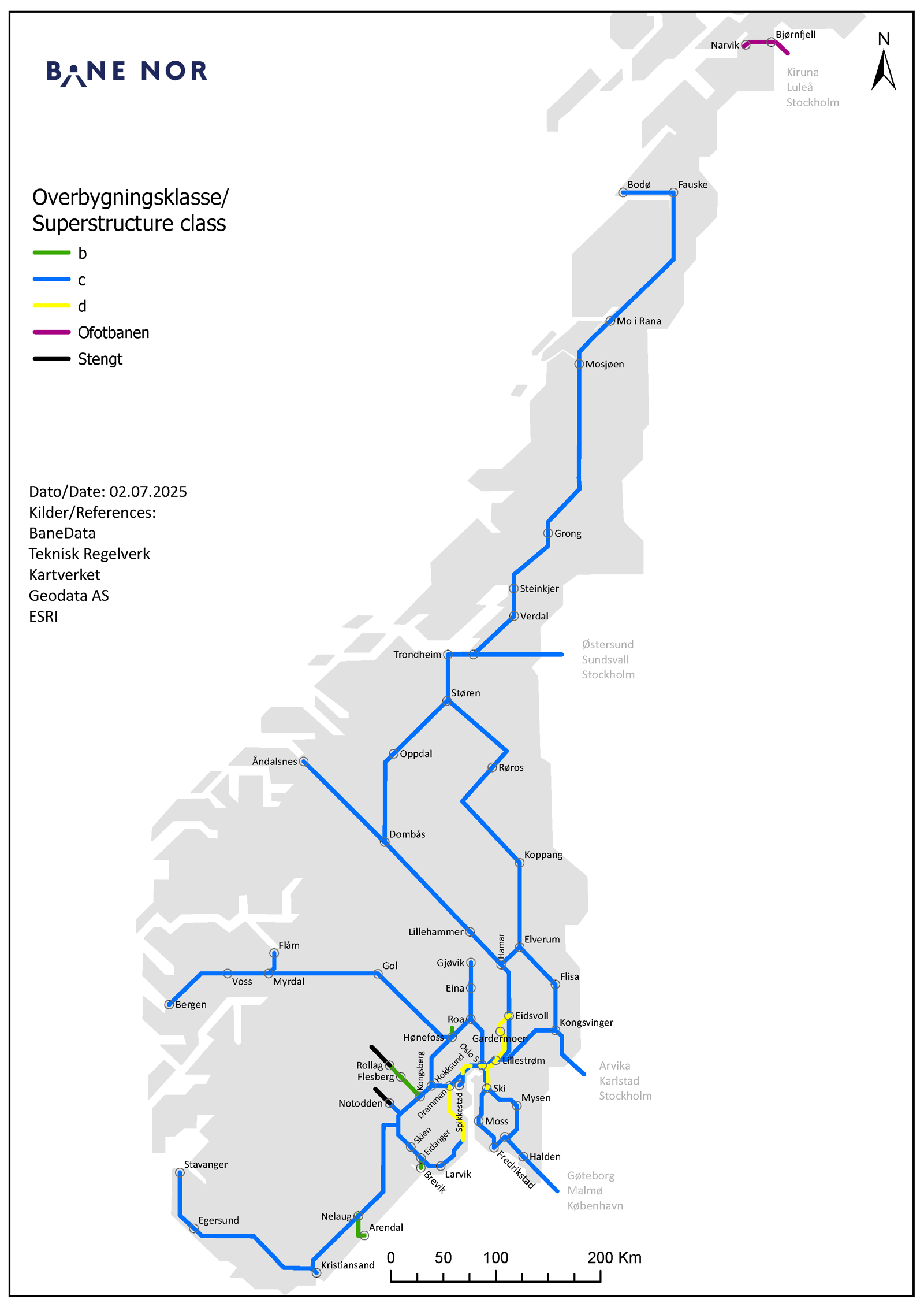

Map of Bane NOR's railway network in Norway, coloured according to superstructure class.

Bane NOR's railway network in Norway, coloured according to superstructure class

For further details, see an overview of superstructure, axle load, metre weight and loading gauge in Bane NOR's track description (iStrekningsbeskrivelsen)(opens in a new tab) and Technical Regulations, Rolling stock/Supplementary information and regulations(opens in a new tab).
